IoT Smart Surveillance & Lighting Integration Solution

AI Detection · Smart E-Fence · App Control · Cloud Backup · Solar-Lighting Automation

1. Overview

The HONG Yard Solution IoT Smart Surveillance System transforms traditional outdoor security into an intelligent, automated network. Using AI object detection, real-time tracking, customizable e-fence alerts, and solar-lighting automation, the system delivers full-coverage protection for residential or commercial properties. All devices are connected under one unified mobile app and cloud platform, providing seamless monitoring and control.

Applications:
Private yards, gated communities, industrial perimeters, parking areas, and outdoor facilities.

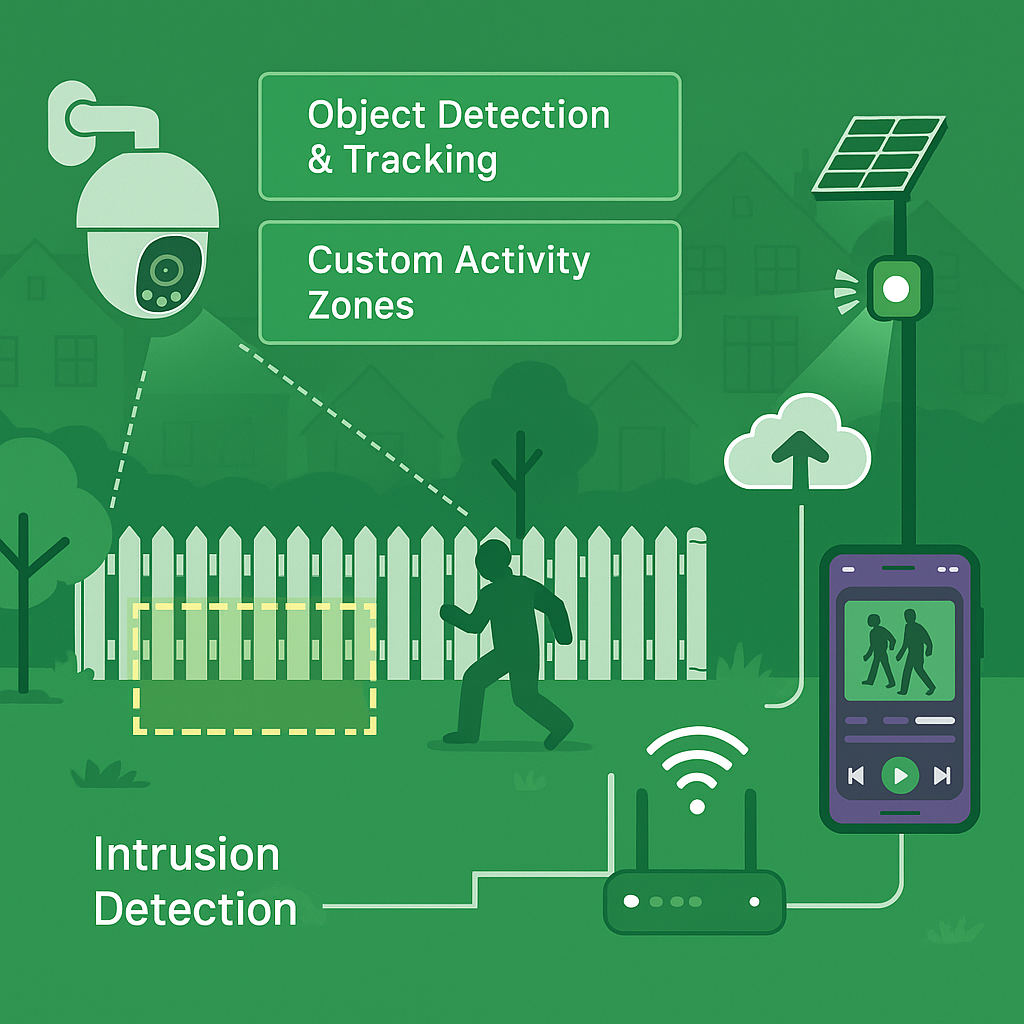

2. System Architecture

A. Edge Devices

• AI Cameras: Support human, vehicle, and object classification with motion detection and live tracking.
  • Mix of fixed, dome, and PTZ cameras for comprehensive coverage.
• Intrusion-Detection Solar Lights: Activate automatically upon perimeter breach; support brightness, flash, and duration settings.
• Smart Sensors (optional): Door contacts, vibration sensors, or beam detectors for additional perimeter protection.

B. Networking Layer

• Hybrid PoE + Wi-Fi Mesh Design: Ensures stable connectivity across large outdoor areas.
• Outdoor-Rated Access Points & Switches: Weatherproof, surge-protected, and VLAN-enabled for secure data routing.
• Integration with Smart Yard Network: Unified SSID, roaming capability, and QoS prioritization for video traffic.

C. Edge & Control Platform

• Local NVR / VMS: Centralized video management for live view, playback, and e-fence configuration.
• AI Engine: Performs on-device analytics for person/vehicle recognition and behavior filtering to minimize false alarms.
• Automation Hub: Coordinates triggers between cameras, solar lights, and app notifications — enabling synchronized lighting and alert responses.

D. Cloud Services

• Cloud Backup: Automatic upload of event clips for 7–30-day storage.
• Unified App Monitoring: Remote access for live view, e-fence management, and device health monitoring.
• OTA Updates & Encrypted Channels: Maintain system reliability and cybersecurity.

3. Key Functions

Dynamic Object Detection & Tracking

• AI-powered real-time detection of humans, vehicles, and pets.
• Cross-camera tracking with consistent object ID for motion history and route tracing.

Customizable E-Fence & Alerts

• Define polygonal or linear boundaries for restricted zones.
• Trigger smart lighting, sirens, or push notifications upon perimeter intrusion.
• Time-based sensitivity modes (e.g., high-alert at night, low-alert during daytime).

App-Based Central Monitoring

• Live streaming, playback, and event timeline in one app.
• Multi-user access levels: Owner / Staff / Guest.
• “Home / Away / Sleep” modes for quick sensitivity adjustment.

Video Cloud Backup & Redundancy

• Dual-recording to local NVR and secure cloud.
• Encrypted event uploads ensure data safety even in case of power loss or tampering.
• Retention plans: 7 / 14 / 30 days.

Solar-Lighting Automation

• Linked to intrusion or motion events.
• Supports brightness, flashing, and delay customization (20–60s).
• Energy-efficient solar charging with 2–3 nights of standby capacity.

4. Network & Coverage Design

• Camera Placement: Corners, entrances, pathways, side yards, and high-value zones.
• Bandwidth Planning:
  • 8 × 4MP H.265 streams @15fps ≈ 20–25 Mbps total; plan for 50% overhead.
• Wireless Deployment: Outdoor AP coverage with directional bridges for extended reach.
• Power System: PoE network with outdoor enclosures and surge protection; solar lights remain independent.

5. Workflow & Delivery

1. On-Site Survey: Measure coverage, signal strength, and light exposure.
2. System Design: Create topology, device map, and e-fence layout.
3. Installation & Calibration: Configure detection zones, signal thresholds, and device pairing.
4. Integration Test: Simulate intrusions, verify lighting response, and app alerts.
5. User Training & Handover: Provide guides, credentials, and maintenance schedules.

6. Performance & Reliability

• Detection Accuracy: ≥95% daytime; ≥90% nighttime (with IR assist).
• Average False Alarm: ≤3 per camera per day after tuning.
• Alert Latency: 2–5 seconds.
• Data Retention: Cloud storage 7–30 days; local RAID redundancy.

7. Security & Compliance

• VLAN separation for video and office networks.
• Two-factor authentication and role-based access.
• End-to-end encryption for video streams and push data.
• Devices rated IP66–IP67 for outdoor operation with anti-surge protection.

Smarter Surveillance. Safer Yards. Sustainable Security.

The HONG Yard Solution IoT Smart Surveillance System combines engineering precision, intelligent networking, and solar automation — redefining outdoor protection for the connected age.
